According to experts

• Working range (-7 °C to +35 °C)
• No heat transfer losses between heat pump and storage tank
• Tried and tested technology, easy to install, easy to integrate into all systems
• No electrical and refrigeration connection work required
• Wide range of operating options (heating via heat pump or boiler)
• Enables cooling in addition to hot water production, the cooling of a room
• Also designed for multivalent operation designed

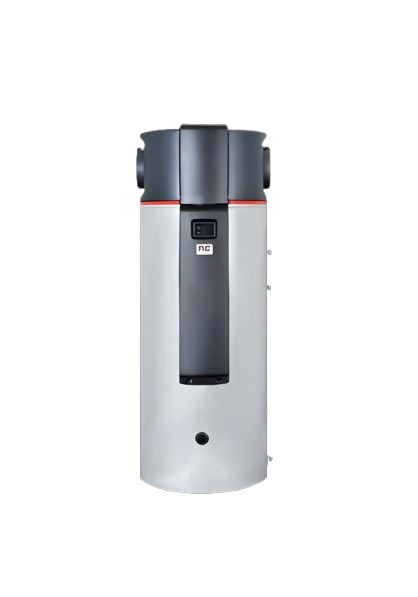

Drinking water heat pump

• Operating pressure: 10 bar
• Capacity: 450 L
• High-quality PU foam insulation
• With potential-free switching input for photovoltaic system
• Extremely energy-saving operation
• With 2 connection pipes ø 250 mm on the side (supplyair and n extract air)
• The unit is of compact design and ready to plug in
• Operating range (-7 °C to +35 °C)
• Corrosion protection due to high-quality enamelling
• According to DIN 4753
• No heat transfer losses between heat pump and storage tank
• Magnesium anode
• Tried and tested technology, easy to install, easy to integrate in all systems
• Wide range of operating options (heating via heat pump orboiler)

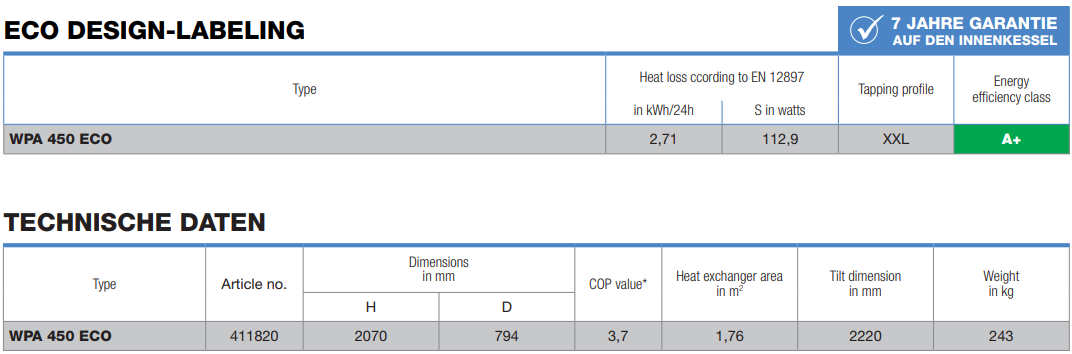

TECHNICAL DATA

1 … according to EN 16147 – air temperature 20 °C, water heating 10 °C to 55 °C, relative humidity 70 %.
2 … with electric heating
3 … with electric heating (heat pump operation up to max. 60 °C)
4 … Distance 1m without air ducts
